Overview

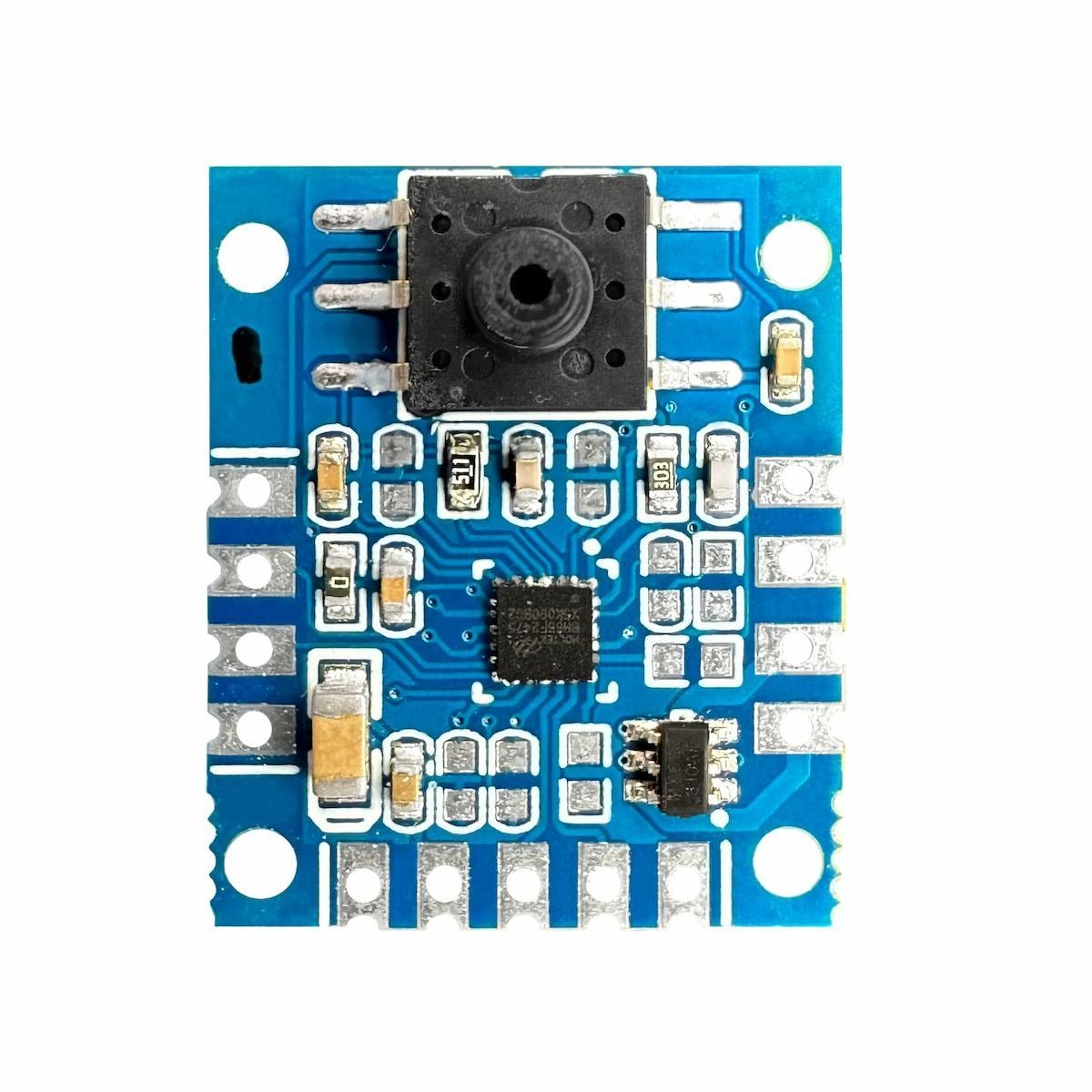

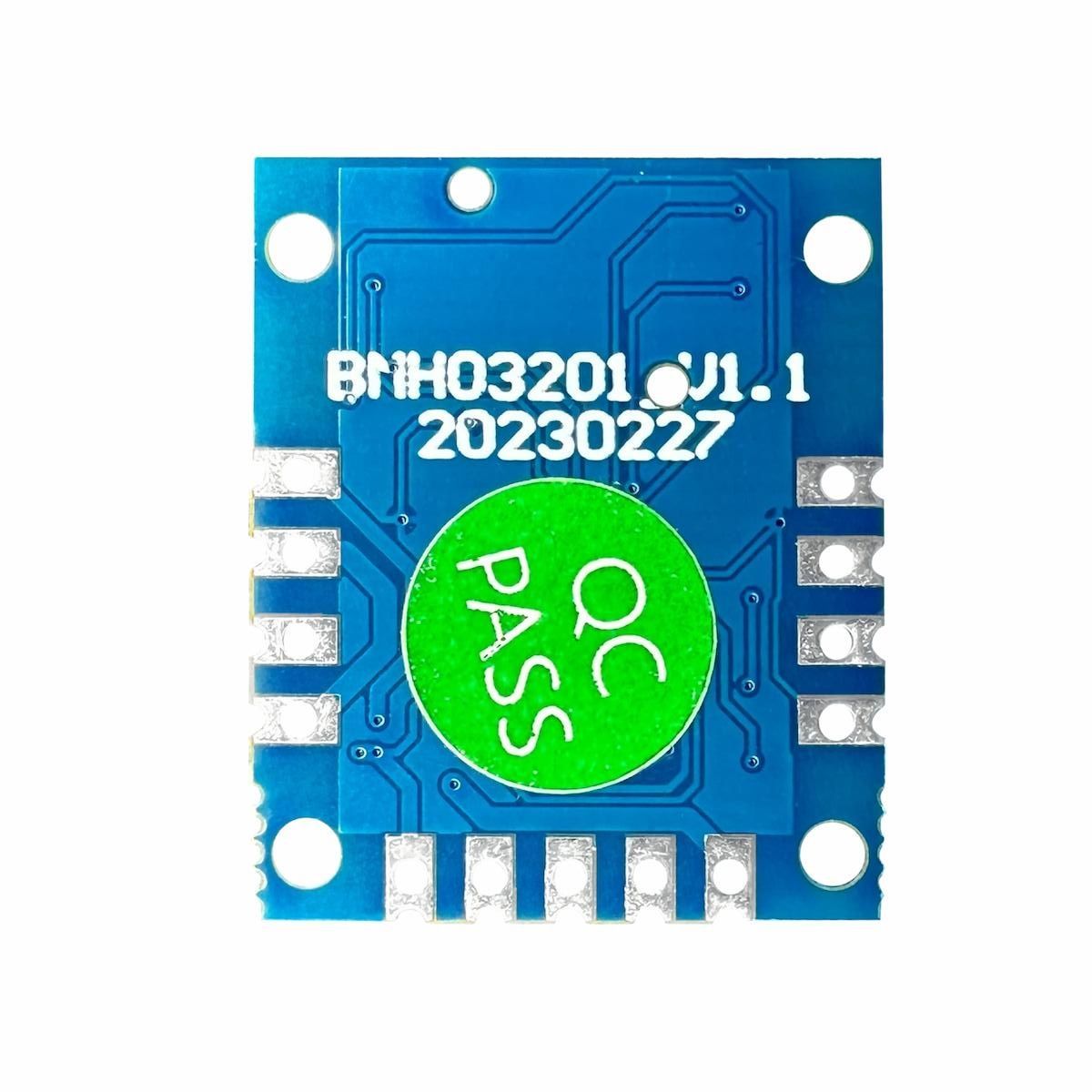

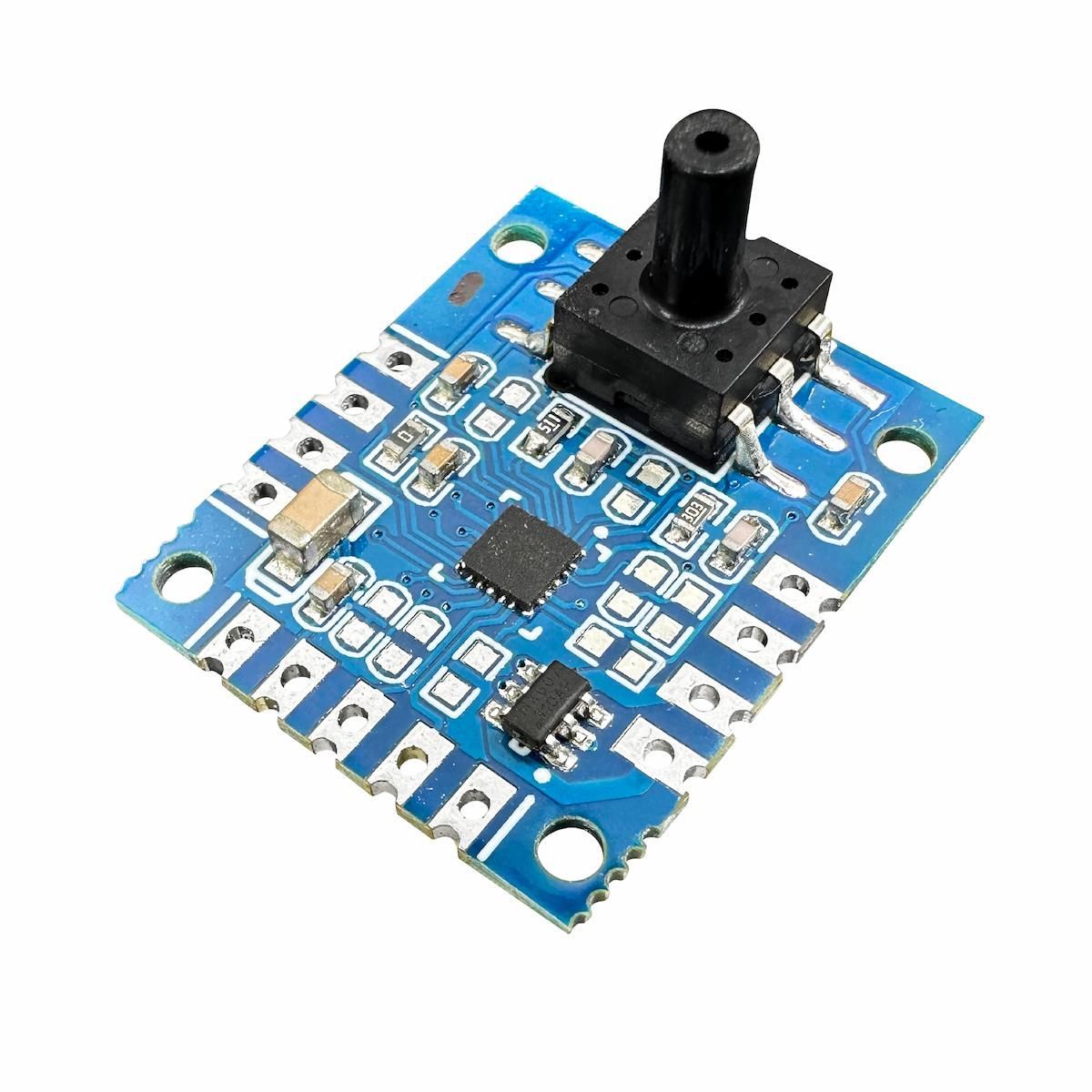

The product is a blood pressure and heart rate measurement module featuring a 24-bit ADC and excellent power-saving capability.
It automatically enters standby mode, during which the measurement function is temporarily disabled. Users can wake it up by issuing a command. With its compact size, this product is ideal for health wearable devices.
Features
- Factory-calibrated
- UART interface (baud rate: 19200bps)
- Heart rate measurement range: 40~200BPM
- Blood pressure measurement range: 0~300mmHg
Technical Specifications
Physical Specifications
- Dimensions:
- 25 x 20 x 11mm
Performance Specifications
- Operating voltage: 2.7V~5.5V
- Low power consumption
- Operating current: < 3mA @5V
- Standby current: < 3μA @5V
Application Areas
health wearable devices
Documents
BMH03201
Contains electrical characteristics, register descriptions, and system architecture. Please refer to it before solution design and software development.
