Product Type: Weighing Module (integrated full-bridge load cell) Communication Interface: UART (38400 8N1) Version Date: 2025-07-15

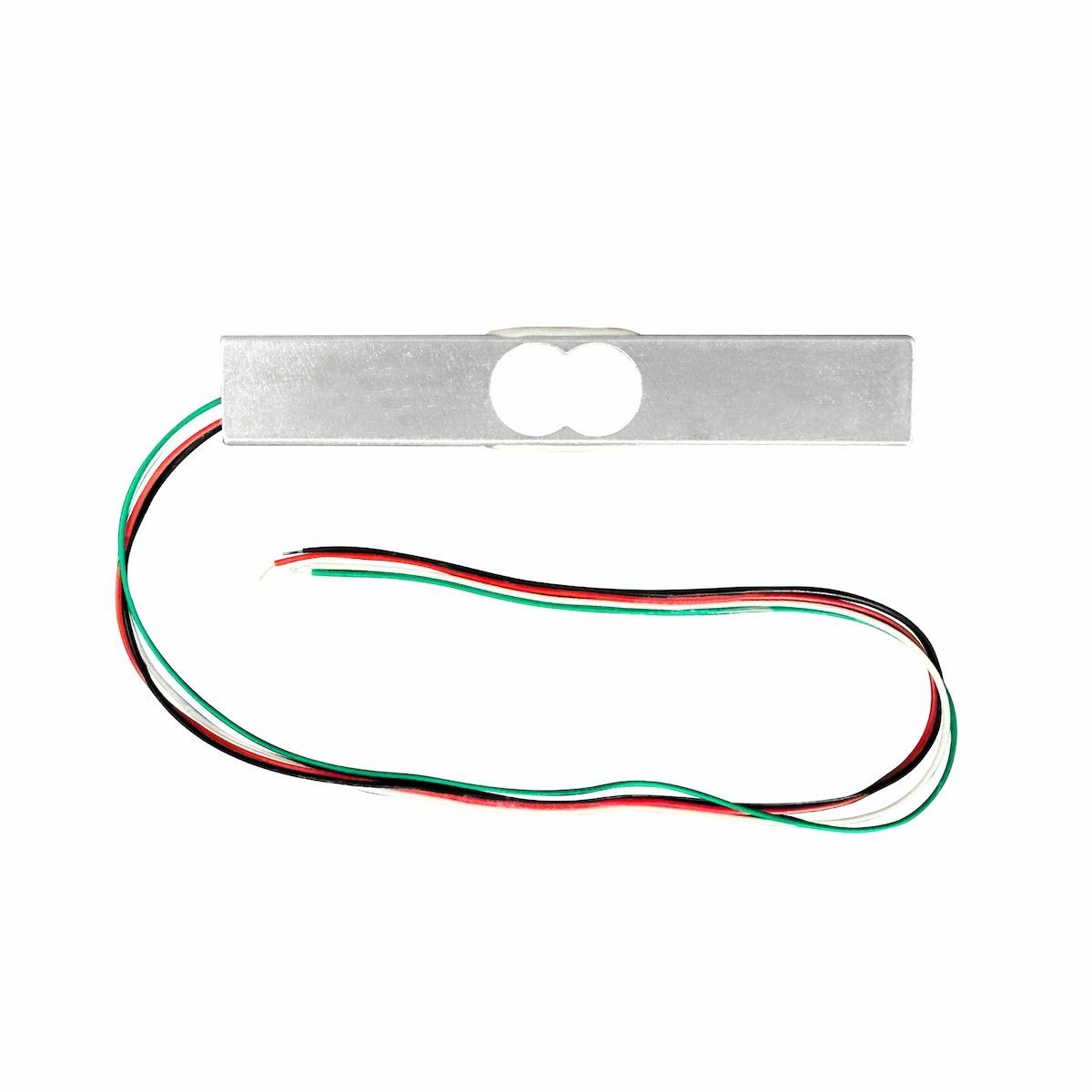

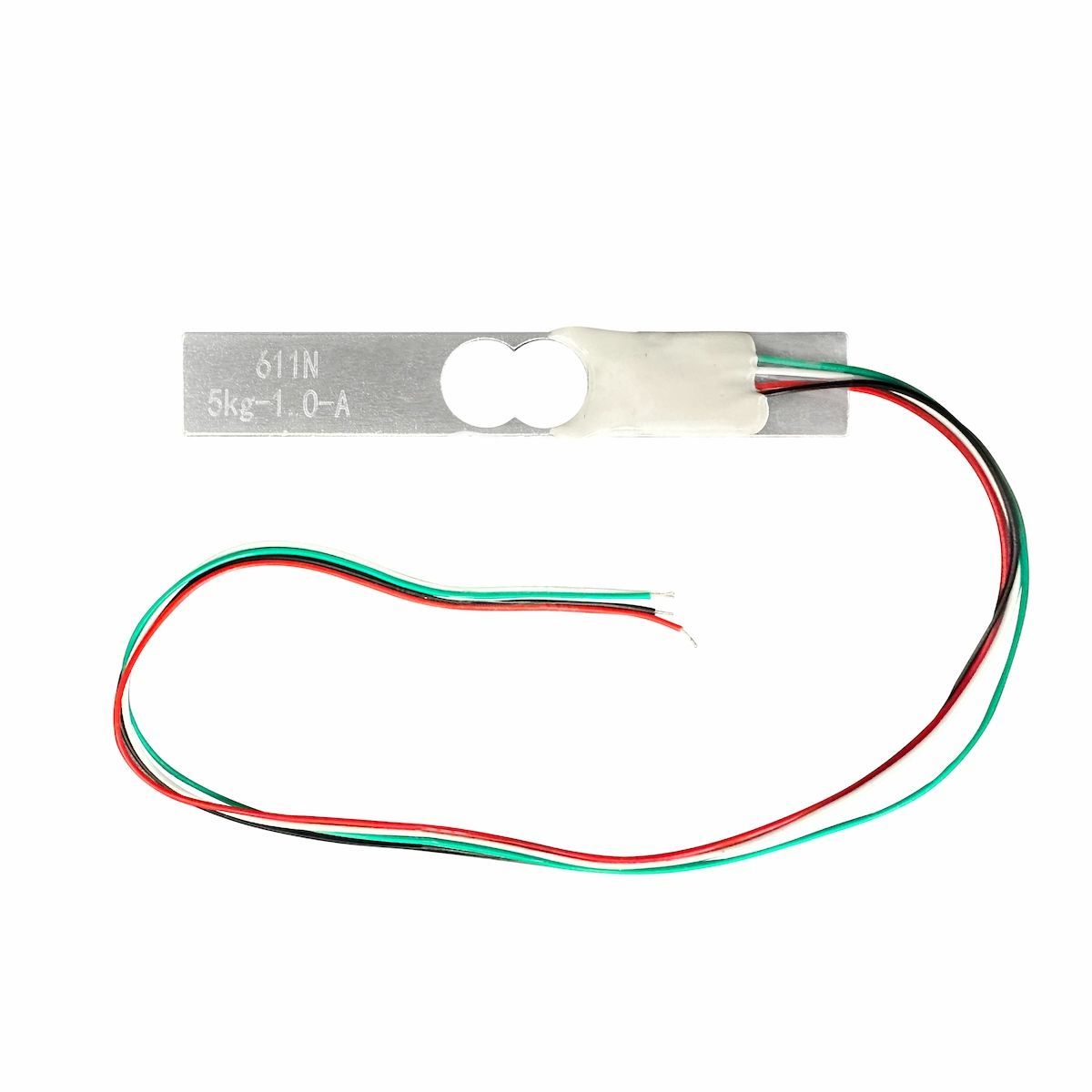

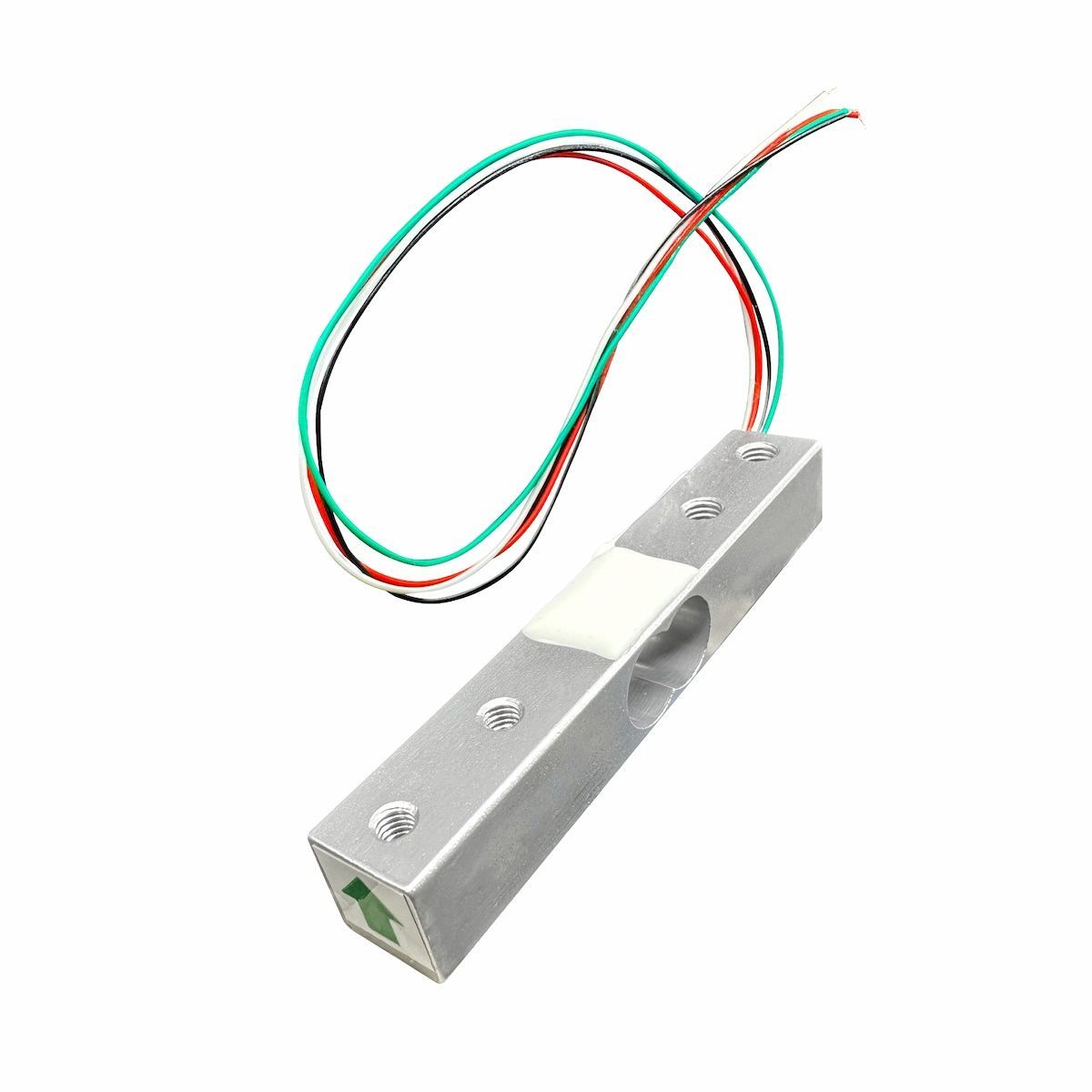

The BMH01105-x is a weighing module from BestHealth Electronics, integrated into a full-bridge load cell. It outputs the weight value directly over UART, with a resolution down to 0.1g, a 5kg range, high/low threshold alarms, and UART (ISP) firmware upgrade. It suits products such as kitchen scales, pet feeders, and coffee machines.

BMH01105/
├── 0.doc/                      # Product datasheet
├── 1.测试AP/                   # Host test tool
└── README.md                   # This guide

The customer-facing specification, the primary reference for development.

Key specifications:

• Supply voltage: 2.6V–5.5V (selectable 3V/5V, default 3V); operating current 4mA@3V
• Range: 5kg; resolution down to 0.1g; safe overload 6000g
• Interface: UART 38400 bps, 8 data bits, no parity, 1 stop bit
• Pinout: 1=GND, 2=VDD, 3=TXD, 4=RXD
• Features: direct weight output, high/low threshold alarms, UART (ISP) firmware upgrade
• Variants: BMH01105-1 (80×12.7×12.7mm), BMH01105-2 (58×12.7×12.7mm), BMH01105-3 (60×12.7×8mm); all 5kg range, soldered interface, accuracy class C1

Command summary (see datasheet section 8):

Before use, connect the module's TXD/RXD to a PC through a USB-UART adapter at 38400 8N1.

1. Read the datasheet — go through 0.doc/BMH01105_datasheet.pdf, focusing on pin definitions, the UART protocol, and the calibration flow
2. Hardware connection — wire the module's 4 lines (GND/VDD/TXD/RXD) to power and the host MCU; for evaluation, connect to a PC via a USB-UART adapter
3. Host verification — run 1.测试AP/BMH01105.exe at 38400 8N1 to read weight in real time and configure parameters
4. Host integration — implement weight reading, state setting, and threshold alarms using the command set (0xF1/0xA0/0xA1/0xB0/0xB1)
5. Calibration & tare — follow the "Calibration" and "Tare" sections of the datasheet
6. Firmware upgrade — when needed, upgrade over UART via the 0x52 ISP command

• Resource pack version: based on the BMH01105-x weighing module design as of 2025-07-15 (datasheet V1.09).
