Platform: BH66F2455 (3.0V) AFE + HT32F67595 (BLE MCU) Release date: 2026-06-08

This document is the user guide for the BestHealth CGM (Continuous Glucose Monitoring) Demo board and associated software resources, based on the BH66F2455 (3.0V) AFE + HT32F67595 (BLE MCU) platform, for customer development and reference.

Project root/
├── 1.doc/                    # Documentation and reference materials
├── 2.Code_AFE/               # AFE (Analog Front End) firmware and drivers
├── 2.Code_Ble/               # BLE (Bluetooth) firmware and protocol stack
├── 3.board/                  # Board and PCB materials
└── README-pub.md / README-pub_EN.md

Contains product descriptions, protocols, chip manuals, and development tool instructions.

Recommendation: Read the Demo board user manual and CGM_BLE协议.pdf before development, then refer to relevant datasheets and programming guides.

The AFE uses BH66F2455 (3.0V platform) for analog signal acquisition (voltage, temperature resistance, WE1/WE2 current) and communicates with the BLE MCU (HT32F67595) or host via UART. BH66F2455_Driver/ contains the full BH66F2455 application project, low-level drivers, and example code.

2.Code_AFE/
└── BH66F2455_Driver/
    ├── application/              # Application layer (e.g. IAP / ISP)
    ├── application_projects/     # CGM application project (programmed into AFE)
    ├── board/                    # Board configuration
    ├── driver/                   # Low-level drivers
    ├── example/                  # Example projects (ADC, NTC, current, UART, timer, ...)
    └── application_projects/doc/ # AFE communication protocol

• Interface: UART
• Settings: 38400 bps, 8N1, no parity
• Data: Little-endian; request–response; inter-frame gap recommended > 50 ms
• Frame format: Header(1) + Length(1) + Command(1) + Data(9) + LRC(1), total 0x0D

Common command codes:

Full frame format, byte definitions, and examples: 2.Code_AFE/BH66F2455_Driver/application_projects/doc/BH66F2452_55_CGM_AFE通信协议.md

• Projects use Holtek format (.pjtx / .OPT); open and build with the official Holtek IDE (HT-IDE / HT32-IDE). The latest IDE already bundles the corresponding MCU CFG — no extra patch needed.
• For programming details, refer to Holtek's BH66F2455 programming guide and the AFE-related documents under 1.doc.

The BLE side uses HT32F67595 with a BLE 5.1 stack, communicates with phone/APP, and talks to the AFE over UART to complete the CGM link. This directory contains the HT32F67595 BLE stack, application projects, and peripheral drivers.

2.Code_Ble/
├── libraries/           # BLE libraries (.a / .lib)
├── sources/             # Source code
│   ├── ble5.1/          # BLE 5.1 stack
│   ├── boards/          # Board definitions (e.g. ht32f67595_evb)
│   ├── components/      # Common components (OTA, Flash, timer, HCI, IPC, ...)
│   ├── device/          # Device support (CMSIS, startup, ...)
│   ├── drivers/         # Peripheral drivers
│   ├── mem_cfg/         # Memory configuration
│   ├── patch/           # Patches and extensions (BLE, HAL, HW)
│   └── projects_source/ # Application and example source
│       ├── application/ # Applications (CGM, GLS, HRS, HTS, PLXS, WSS, ...)
│       │   ├── cgm_LPwr/     # CGM low-power
│       │   └── cgm_profile/  # CGM protocol and GATT
│       ├── ble_examples/     # BLE peripheral / central / multi-role examples
│       └── ...
└── third_party/         # Third-party config (e.g. CMSIS Pack)

• CGM application and protocol: sources/projects_source/application/cgm_profile/, cgm_LPwr/
• BLE examples: sources/projects_source/ble_examples/ (peripheral, central, multi-role)
• Other profiles: GLS, HRS, HTS, PLXS, WSS under application/ for reference

Buildable projects are typically opened in Keil (or the IDE specified by Holtek) via the corresponding .uvprojx / project file. Refer to the delivered project list for specifics.

• Install Holtek HT32F675x5 DFP (see 1.doc/HT32F67595_开发资料/)
• Program with J-Link or e-Write32 / HOPE3200 following the programming guide in 1.doc/HT32F67595_开发资料/
• OTA updates use HOLTEK_OTA_1.2.7.apk with the instructions in HOLTEK_OTA_APP下载连接.txt

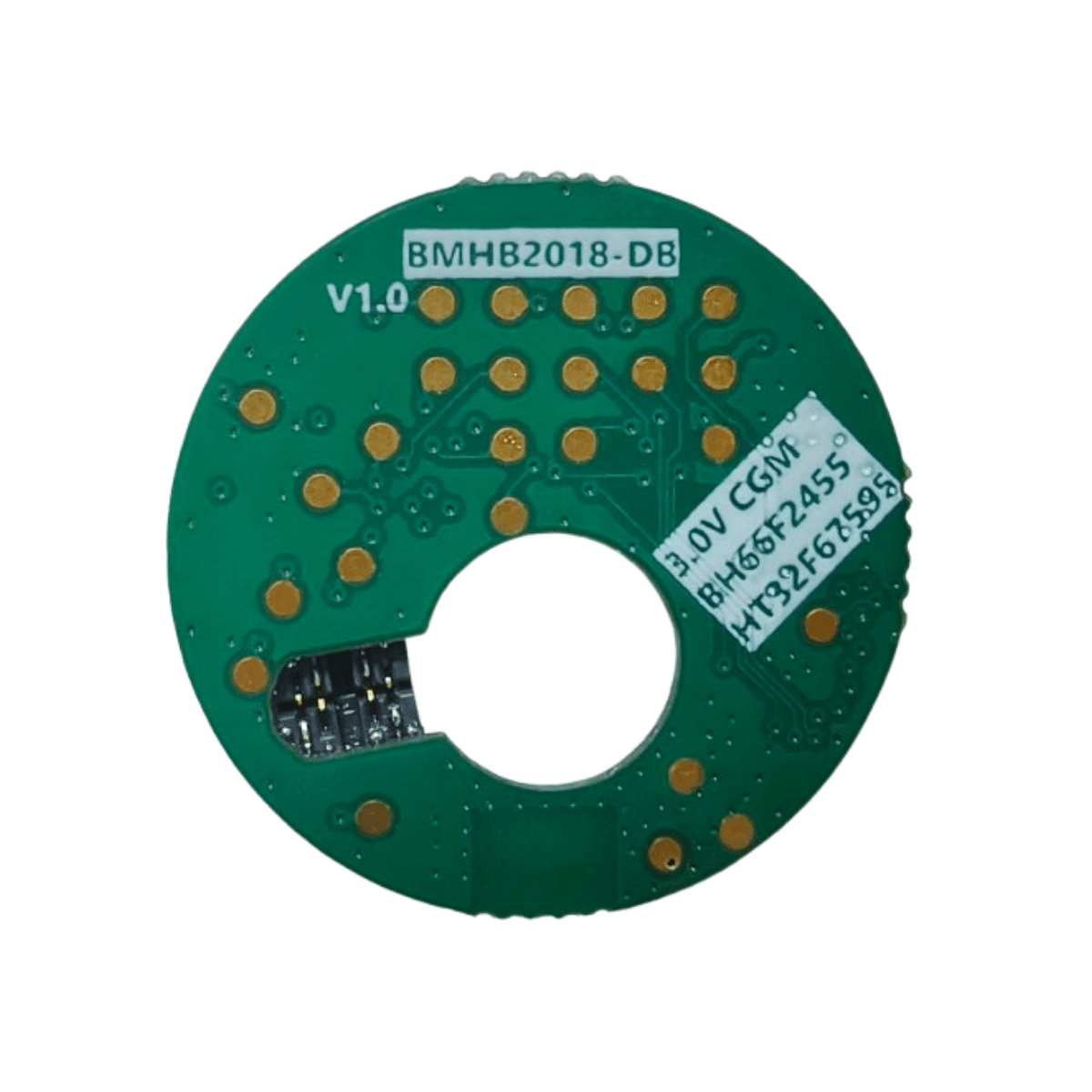

Demo board and CGM-related PCB design files for hardware reference and revisions.

Recommendation: Extract the zip and confirm schematic / PCB version before using for hardware design.

1. Read documentation

• 1.doc/CGM_BH66F2455_HT32F67595_Demo_Board使用說明-V0.1.pdf
• 1.doc/CGM_BLE协议.pdf

1. Hardware setup

• Use the Demo board or your own board (see 3.board/);
• Confirm supply platform (3.0V → BH66F2455) and battery/antenna (see 1.doc/相关器件Datasheet/).

1. AFE firmware

• Open the corresponding CGM application project under 2.Code_AFE/BH66F2455_Driver/, build with Holtek IDE, and program;
• Follow the frame format and timing in BH66F2452_55_CGM_AFE通信协议.md when integrating with BLE or host.

1. BLE firmware

• Open the CGM project under 2.Code_Ble/, install DFP and programming tools, build, and program;
• Use the CGM BLE protocol document to integrate with the APP/phone; OTA uses the APK and instructions in 1.doc.

1. Chips and components

• Refer to 1.doc/相关器件Datasheet/ and HT32F67595_开发资料/ for design and troubleshooting.

• Resource pack version: based on the BestHealth CGM BH66F2455 + HT32F67595 design as of 2026-06-08.
• AFE protocol: see version notes in 2.Code_AFE/BH66F2455_Driver/application_projects/doc/BH66F2452_55_CGM_AFE通信协议.md.
